III-Automata and chiming mechanisms

by artsandstars last modified Jul 13, 2012 03:14 PM
d'après F. Branciard, C. Morat, A. Chapiro. Revised G. Bussery, C.H. Eyraud ANCAHA: Association Nationale des Collectionneurs et Amateurs d'Horlogerie Ancienne

I-Historical

II-Description of the astronomical clock

III-Automata and chiming mechanisms

Automata

This part of the clock is largely responsible of its popular reputation. Today, the 19 automata only operate at noon, at 2:00pm, 3:00pm and 4:00 pm in order not to disturb the religious services.

Ly_AngeSablier.jpg Ly_AngeOrchestre.jpg Ly_Coq.jpg

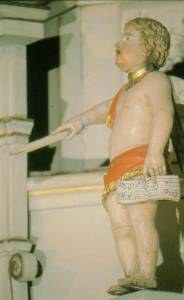

The angel with the sand-glass The angel conducting the orchestra
The rooster

Here is the sequence of events : the angel holding a sand-glass salutes and tilts the sand-glass upside down, the rooster crows 3 times while craning its neck, opening its beak and beating the wings; the angel, conducting the orchestra, moves his head, lifts his stick and with his foot beats the time.

Ly_MarieAnnon1.jpg Ly_MarieAnnon2.jpg

At this moment the angels holding small bells activate them and the bells play the hymn of Saint-John the Baptist : « Ut queant laxis ». At the same time the Swiss Guard starts his round, the scene of Annunciation comes to life. Mary is praying, the door opens and angel Gabriel appears, the Virgin slightly moves her head to listen to the Word of God ; the ceiling half-opens, the Holy spirit as a dove comes down to the Virgin.

Ly_DieuFace.jpg Ly_Ange_Carilloneurs.jpg

Simultaneously, God the Father blesses his people three times. The angel and the dove retire, the door and the ceiling close, blessed by God the Virgin keeps praying. The Swiss Guard concludes his round and the big bell strikes the hour.

Video of the Annunciation

Note: To see audiomontages, you need the software Real Player.
You can install it free for PC at thisadress or, for Mac, this one.

Chiming mechanism

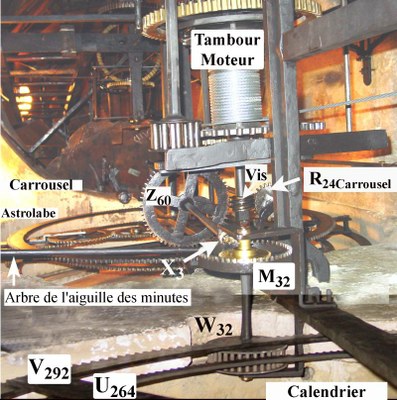

Mechanism of the astrolabe, with the sun and the moon Ly_Engrenages.jpg



Various mechanisms which animate the automata and chiming are shown below.

Mecanisme Ly_Meca_Dessous2.jpg

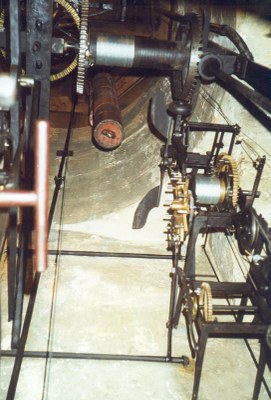

Inside the clock from above Mechanism driving the Swiss guard



Astronomical clocks in Europe
